Tetrahedral Mesh¶

The tetrahedral mesh is the basis for most of the simulated object types.

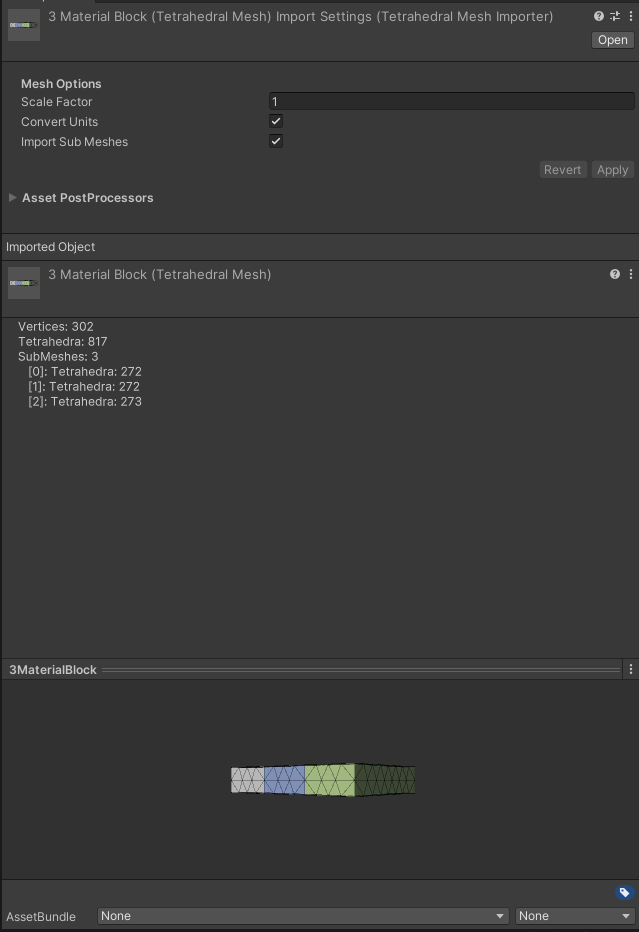

To import a tetrahedral mesh from an MSH file, drag and drop the file into the project’s assets folder. The mesh will be automatically imported and ready to use:

../../_images/ImportedTetrahedralMesh.PNG

Warning

At the moment, only Version 2 ASCII MSH files are supported.

Note

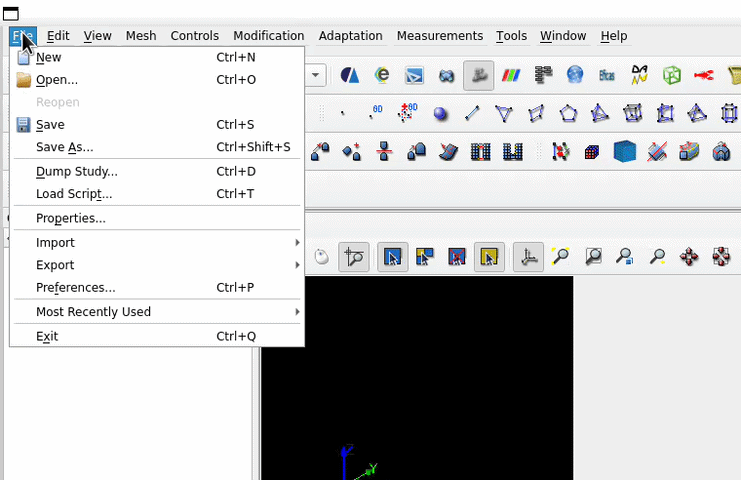

You can use third party applications like GMSH or Salome-Meca to generate complex MSH files.
