Scenegraph Editor v2

Goals

The SceneGraph Editor v2 updates the scene graph format and the editor. It has the following goals:

  1. Increase overall performance while editing actions

  2. Pose a more intuitive and consistent interface for editing

  3. Fully support undo/redo as well as copy-paste operations

  4. Use a single json file that is easier to modify even outside of unity or the scene graph editor

  5. Be fully backwards-compatible with the current file format and allow for converting to and from it.

How to use

You can open Scenegraph Editor v2 in three ways:

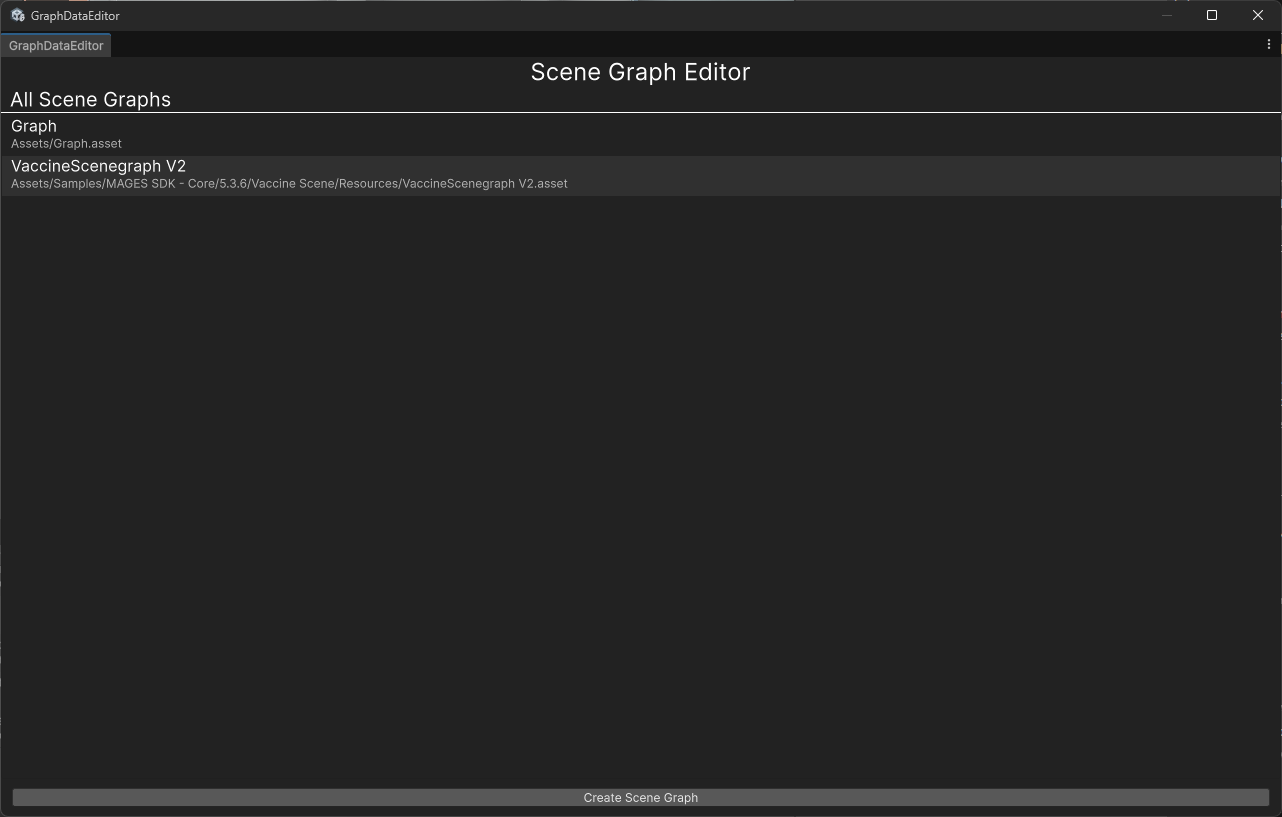

  1. From Unity’s top bar, choose ORamaVR Creator > Scene Graph Editor 2. This will open the Home page which shows all of the available graphs.

../../_images/scenegraph_home.png

  1. Double click any existing GraphDataSerialized asset in the Project window.

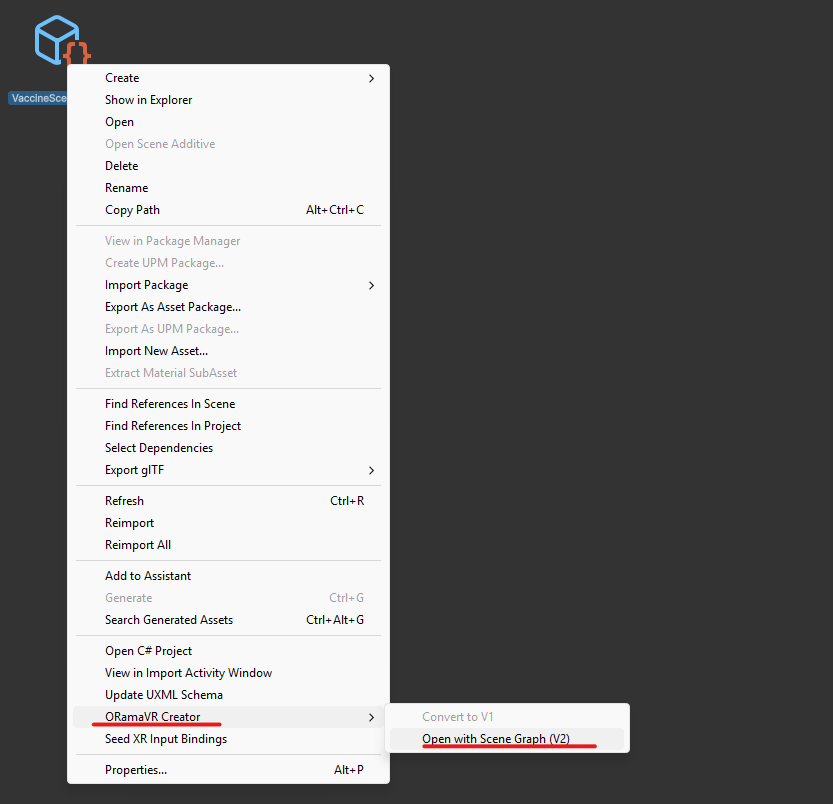

  2. Select a legacy SceneGraphData asset, right click it, and choose ORamaVR Creator > Open with Scene Graph (V2).

../../_images/scenegraph_v1_to_v2.png

Main editor

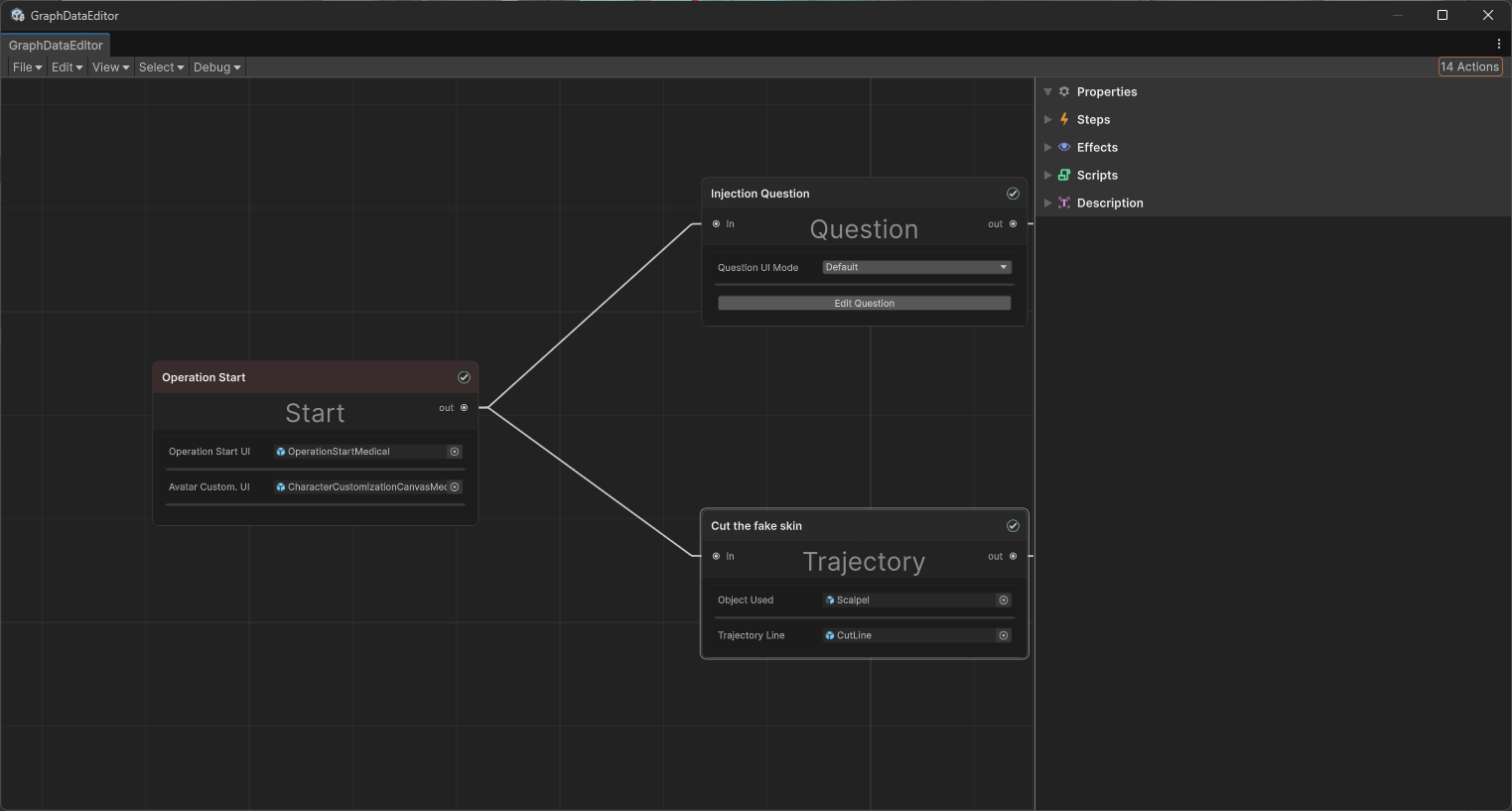

The main v2 editor combines a graph canvas on the left with a dedicated inspector on the right.

../../_images/scenegraph_layout.png

The toolbar contains the following groups:

Menu / Area

Explanation

File

Save the current v2 asset, create a new copy with Save As, or open the graph view preferences.

Edit

Undo and Redo graph changes.

View

Open the command palette and toggle the minimap.

Select

Frame the whole graph or only the current selection.

Action counter

Shows how many Actions currently exist in the graph.

Inspector panels

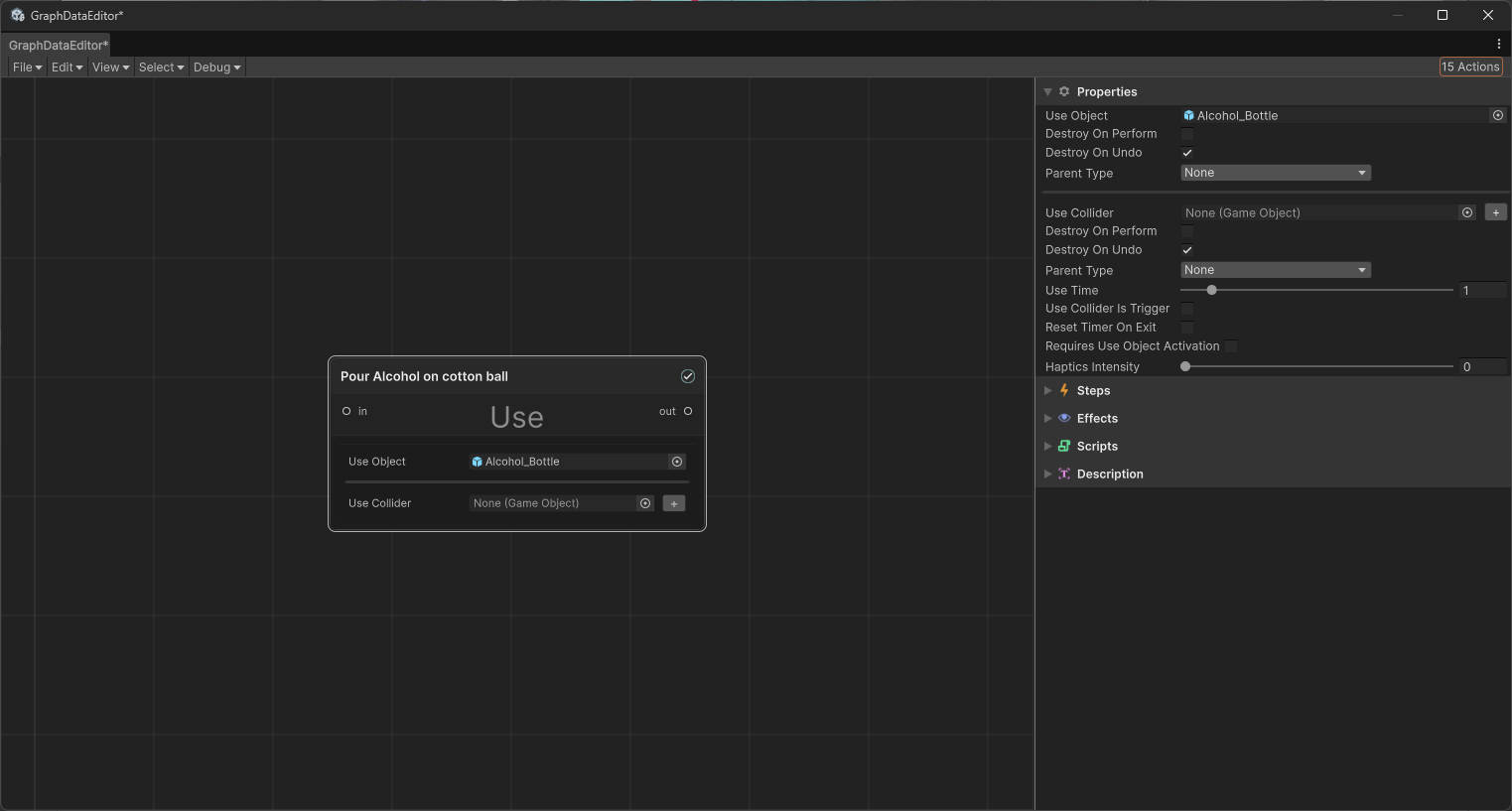

Selecting a node opens its properties, steps, effects, attached scripts and description in the right side inspector.

Additionally, the advanced mode properties in the old scene graph will now only be displayed in the “Properties” foldout on the inspector.

../../_images/scenegraph_inspector.png

The inspector is split into foldout panels:

Panel

Explanation

Properties

The serialized fields for the selected Action. Includes the advanced properties.

Steps

A new step container editor which exposes more sections than the old one. For each event there is now a “Before” and “After” section

Effects

The old effects editor with not many changes to the layout.

Scripts

The attached scripts container

Description

The action description. It is useful here to add either TODOs, or more information for the action

What changed

Compared to the legacy Scenegraph editor, v2 introduces these workflow changes:

  1. A dedicated v2 asset type. Scene Graph v2 stores graph data inside a single json file (GraphDataSerialized) instead of separate assets for each node.

  2. A unified inspector workflow. Properties, Steps, Effects, Scripts, and descriptions now live together in the same side panel for the selected node. You can view and edit them all at once.

  3. Built-in migration from v1. Existing SceneGraphData assets can be opened with v2 from the asset context menu.

  4. Save as a new asset. You can duplicate or branch a graph with File > Save As.

  5. Export back to v1 when required. A v2 graph can be converted back to a v1 asset from the asset context menu with ORamaVR Creator > Convert to V1.

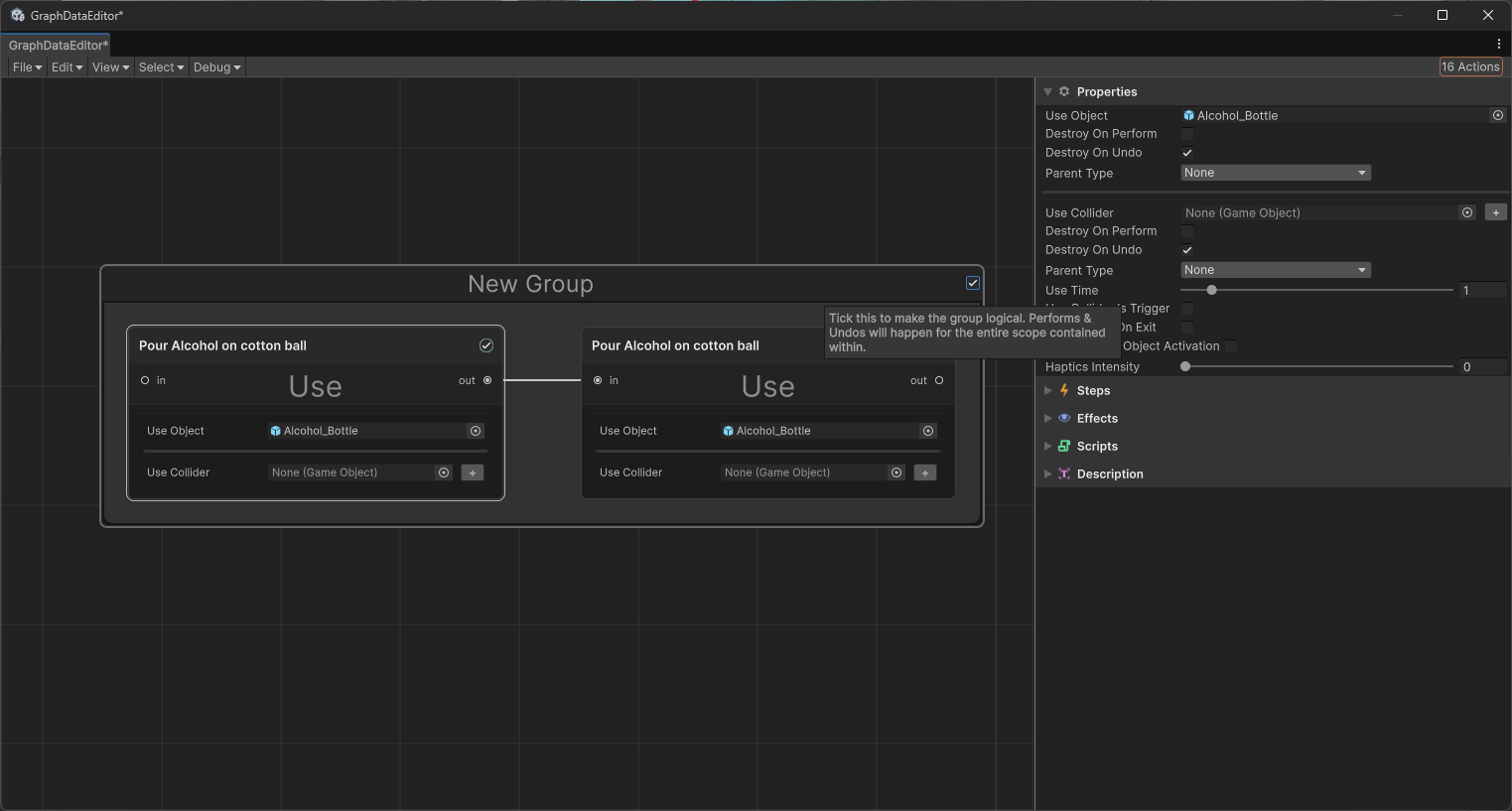

  6. The group action has now been moved to the “Groups” feature of v1: Create a group, and tick the checkbox on the top left to make the section synchronously perform/undo.

../../_images/scenegraph_group.png

Compatibility with v1 graphs

Scenegraph Editor v2 is designed to coexist with the legacy workflow:

  1. Use Open with Scene Graph (V2) when you want to start from an existing v1 graph.

  2. Save the converted result as a new GraphDataSerialized asset.

  3. Use the asset context menu option ORamaVR Creator > Convert to V1 if you need a v1 output again for an older workflow.

For a step by step migration guide, see Scenegraph_V1_To_V2.
